Embark on a sustainable journey with YANMAR’s new 48V Electric Saildrive series, featuring robust innovative technology and a unique integrated cooling system. Silent, low maintenance and fully sustainable.
YANMAR’s first E-Saildrive offers a new chapter in sustainable water leisure, backed by marine experience.
SIMPLE INSTALLATION
- All-in-one solution including saildrive, gear, motor, motor
- controller, and cooling system.
- 48V Plug-and-play integration.
- No hull modification needed - effortlessly integrates into the current standard YANMAR platform.
- Suitable for day sailors, catamarans or cruisers up to 40 foot (depending on displacement).
- Perfect for re-powering YANMAR YM engines.
INTEGRATED COOLING SYSTEM
- Our in-house designed cooling system is fully integrated within the saildrive and functions as a single compact solution. This unique feature ensures optimal performance and longevity
Specifications
Rated output 7 kw / 9.5 mhp
Rated Speed 2700 rpm
Type SailDrive
Max Speed 2900 rpm
Max Speed (Reverse Boost) 3300 rpm
Rating S2-60
Gear Ratio 2.13
Dry Weight 68.7 kg

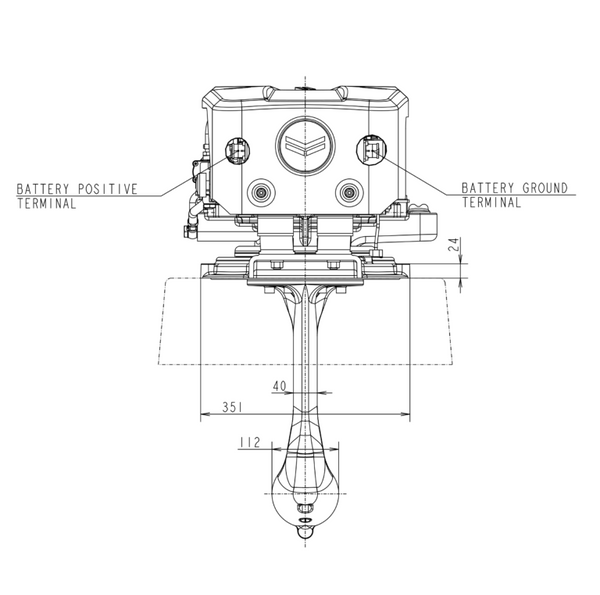

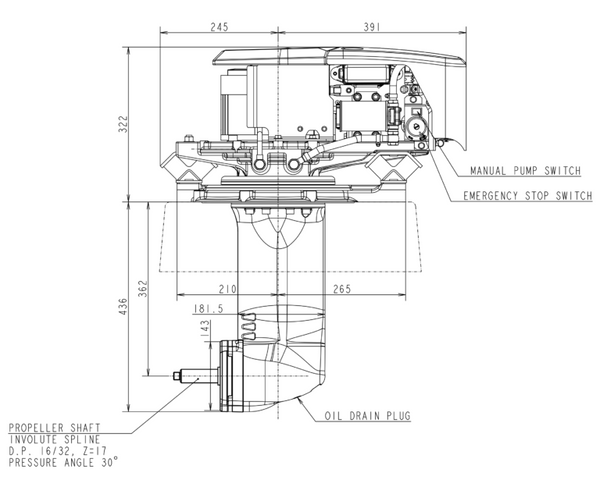

Dimensions (mm) 758 x 636 x 424
Nominal Voltage 48 VDC
Battery Technology Lithium-ion LiFePO4
NOTE:
7 kW @2700 rpm*
Note: Battery and propeller are not included in standard delivery
S2-60 = Minimum 60 minutes at full rated output,
at sea water temperature 30 degrees C,
ambient air temperature 50 degrees C
Standard Engine Package Includes
• Battery cable connectors
• Display
• Control head (side mount or top mount)
• Switch panel
• Backup panel
• Harnesses [3m, 5m, 10m, 20m]
• Terminator
