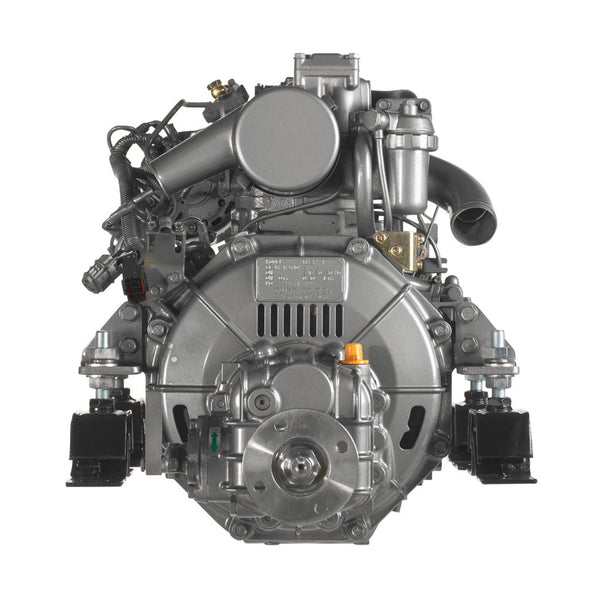

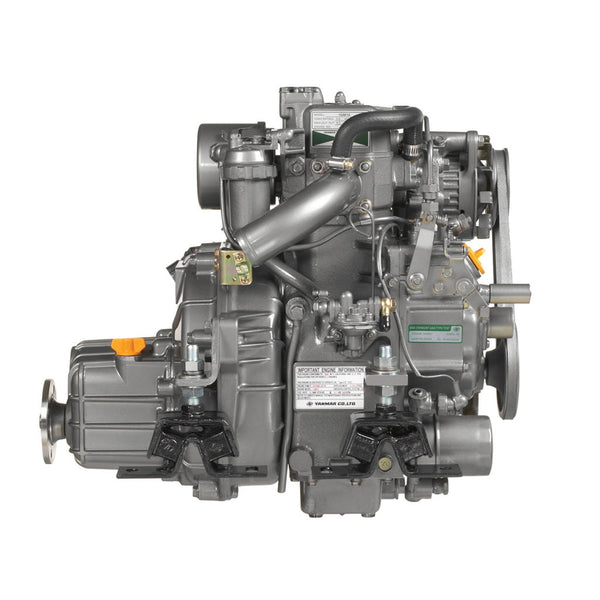

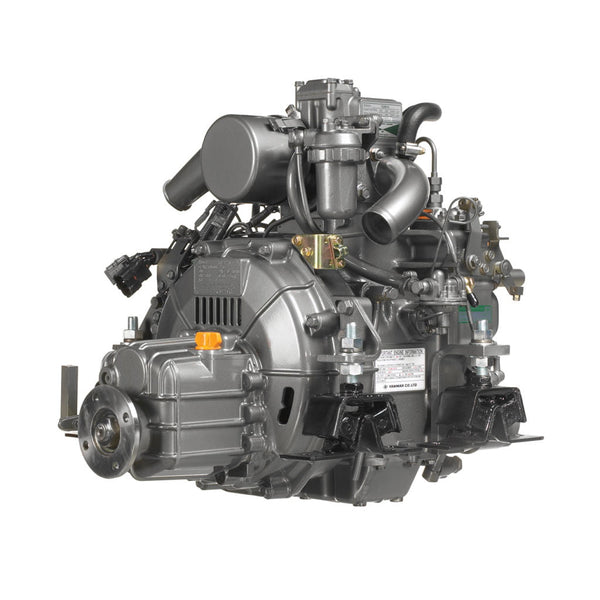

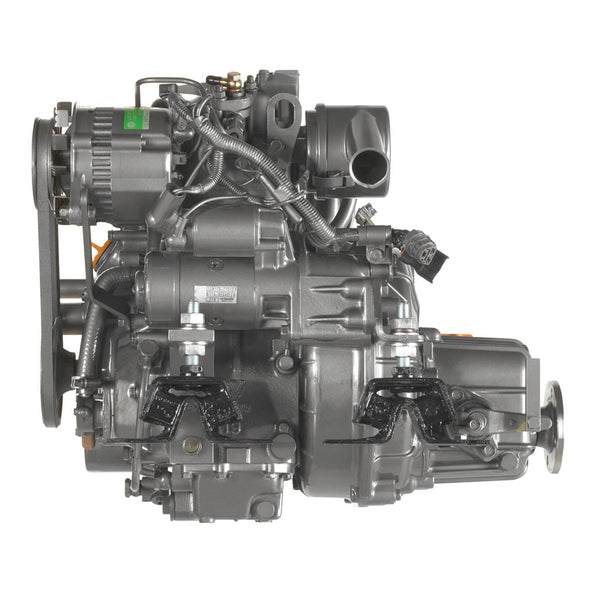

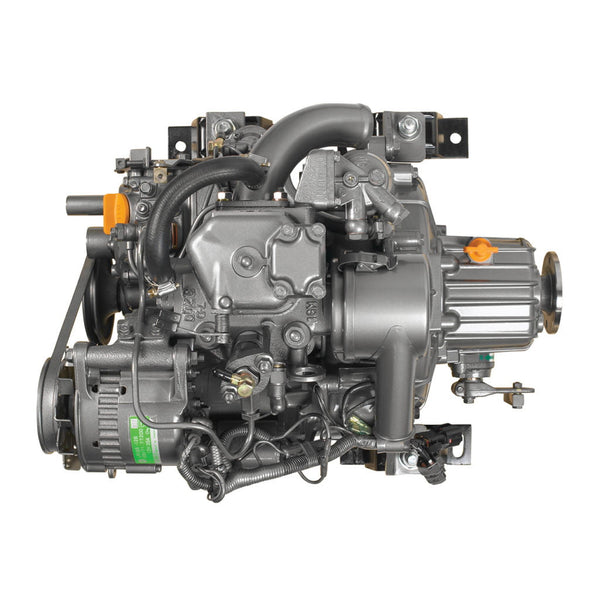

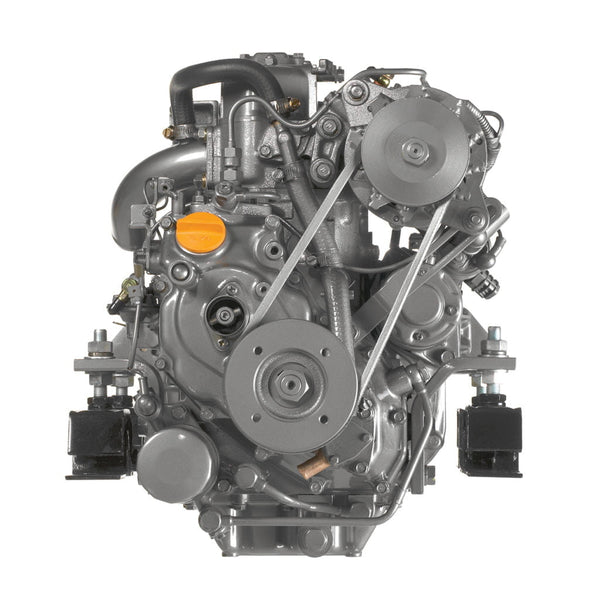

The YANMAR 1GM10 is a naturally aspirated 1-cylinder engine that comes with either a marine gear or sail-drive unit, making it ideal for use on sailboat crafts.
This engine belongs to the GM series and is a four-stroke diesel engine with a swirl pre-combustion chamber and a direct seawater cooling system.
Standard Engine Package
- Exhaust mixing elbow [L-type]
- Alternator 12V – 40A
- A panel
- Flexible mounts
Specifications

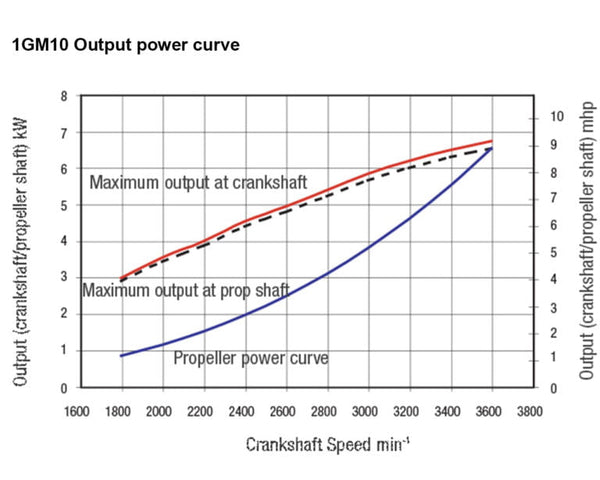

Rated Output 6.6 kw / 9 mhp
Rated Speed 3600 rpm
Displacement 0.318 L / 19.41 cu. in
No. of cylinders 1 cylinder
Cylinder Bore x Stroke 75 mm x 72 mm / 2.95 in x 2.83 in
Combustion system Indirect Injection, In-line Pump
Aspiration Natural
Alternator 12V - 40A
Dry weight without gear 71 kg / 156.5 lbs
Dimensions 554 mm x 410 mm x 485 mm
Controls Mechanical
Certifications RCD 2 EPA Tier 2 BSO II EMC
NOTES:
1 kW = 1.3596 mhp = 1.34102 bhp

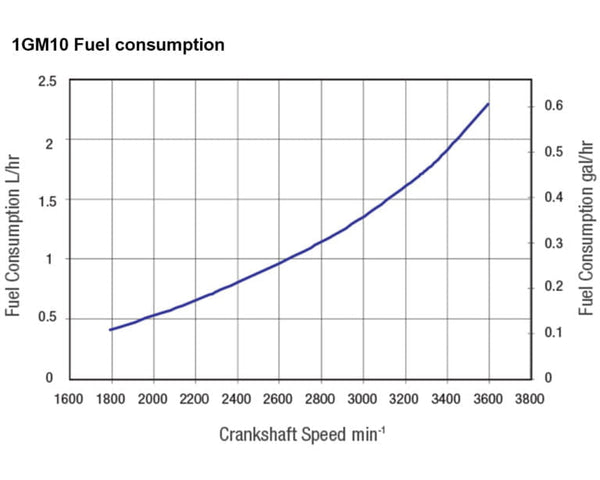

Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM2P-1 marine gear
(Dimensions may vary with other gears/elbow)
